Product Description

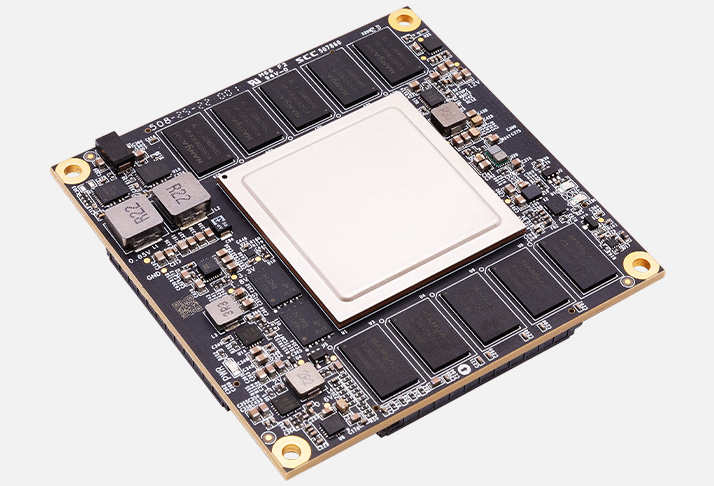

The ACKU15-D FPGA System-on-Module(SoM) combines high-end AMD Xilinx Kintex UltraScale+™ series device with fast DDR4 SDRAM, parallel Quad-SPI Flash and thus forms a complete and powerful embedded processing system.
Applications
Data Center
● Network Acceleration
● Storage Acceleration
Industrial, Science, Medical
● Medical Imaging Backhaul
● Machine Vision
Wired Communications
● PON Access
● Optical Transport Network
Wireless Communications
● Radio
● Basebandn
Key Features
● AMD/Xilinx Kintex Ultrascale+™ :
◆ 16nm FinFET FPGA fabric
◆ Up to 60% reduction in power consumption compared to 7 Series FPGAs

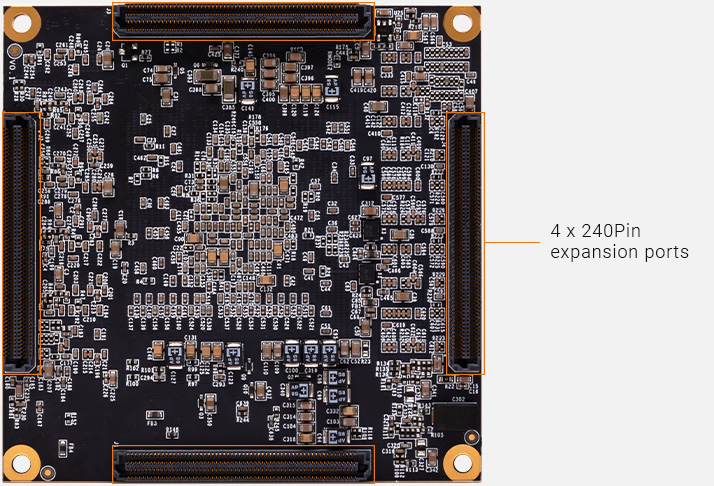

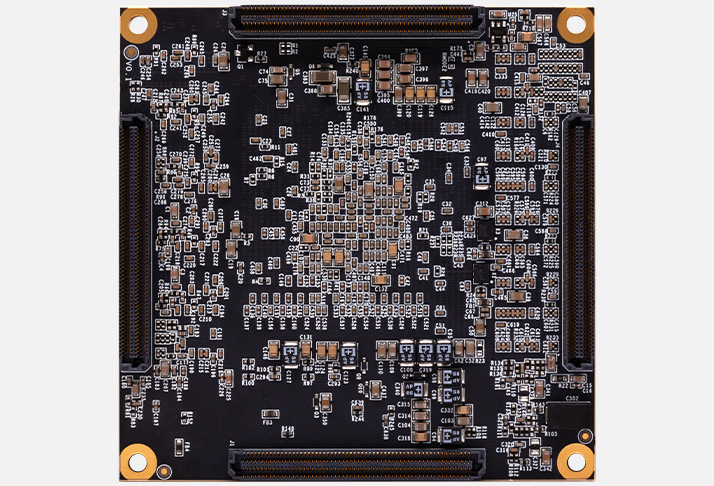

◆ More than 2 x faster system-level performance per watt compared to Kintex 7 FPGAs● Pluggable module with 4 x Samtec board-to-board connectors
● 10 GByte (80-bit) DDR4 SDRAM
● 2 x 64MB QSPI Flash
● 1 x PCIe® Gen3 ×16● Gigabit transceivers
◆ 32 x GTH, up to 16.3 Gbps
◆ 24 x GTY, up to 28.21 Gbps● User I/Os
◆ 210 FPGA I/Os (88 HD + 122 HP)● Work temperature range of -40°C to +85°C
● 12V single supply
● Dimension: 80 x 80mm form factor
Module Features

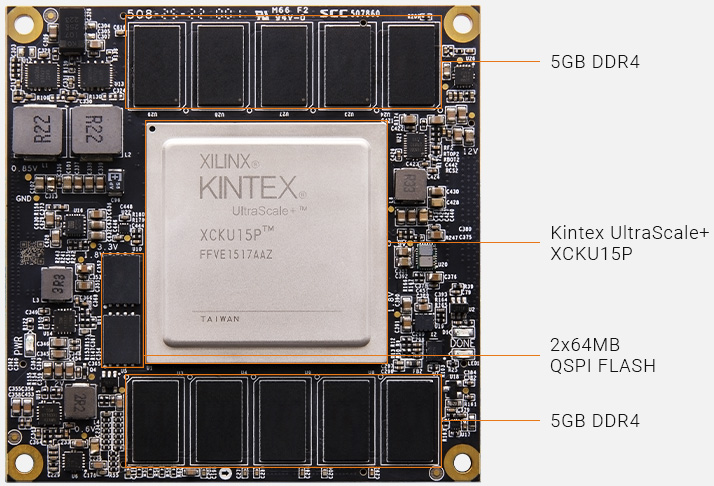

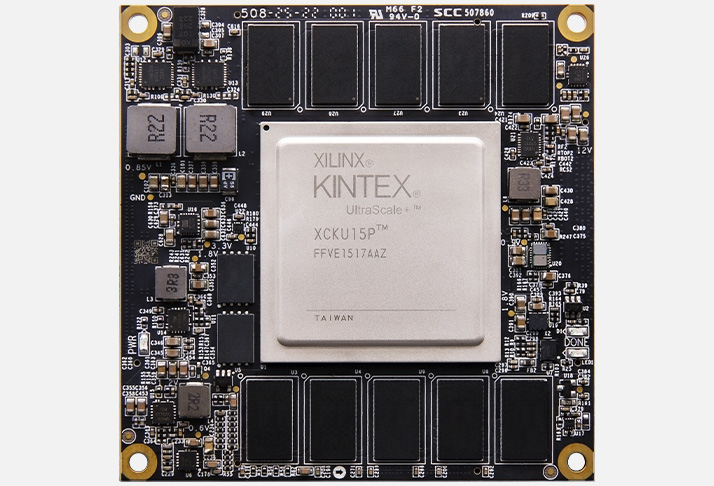

Featuring the AMD/Xilinx Kintex Ultrascale+™ XCKU15P-2FFVE1517I
* If you want to design a base board based on this Kintex Ultrascale+™ FPGA System-on-Module, you need to purchase ADM6-60-01.5-L-4-2-A-TR high-speed Board to Board Connectors, 240 Pins, you also need to purchase FAN8080 Heatsink Kit, the FAN8060 Heatsink Kit is an optimal cooling solution for ALINX FPGA and modules – it is low-profile and covers the whole module surface.
* We have Kintex Ultrascale+™ development boards AXKU15-D that uses this Kintex Ultrascale+™ module, to get started with development straight out of the box.
Please check the Relevant Products at the bottom of the page and click to learn more details.
What's Inside the Box
ALINX AMD Xilinx Kintex Ultrascale+™ XCKU15P FPGA System-on-Module/SoM
| Kintex Ultrascale+™ SoM | 1 |
|---|
