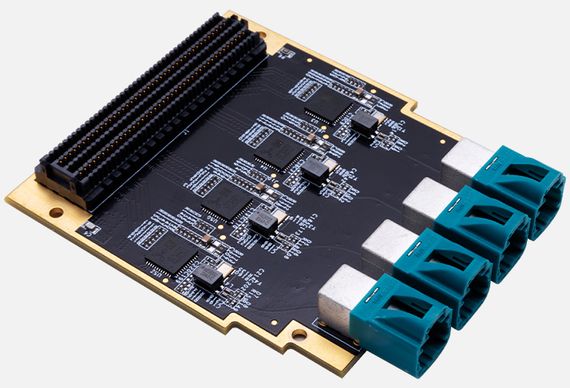

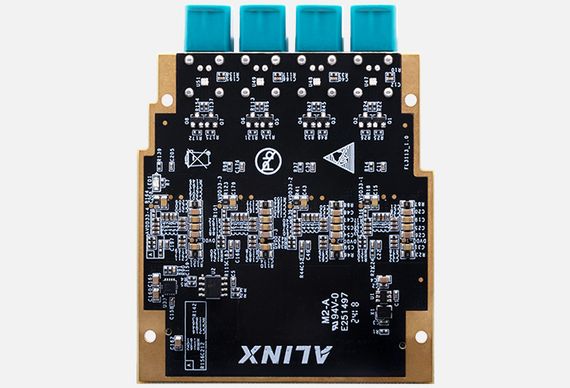

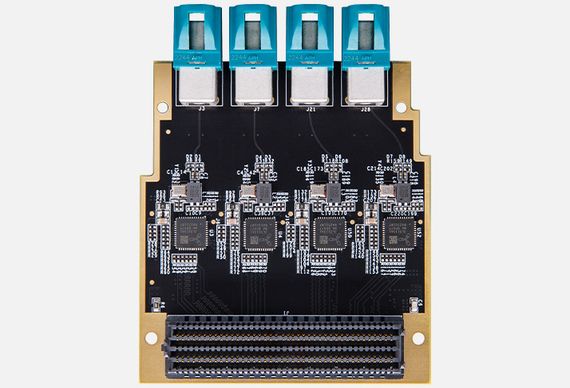

FL3113 4-Port 1000BASE-T1 Automotive Ethernet Module FMC Card
The FL3113 is an FMC module integrating four JL3113A1-NA automotive-grade Ethernet PHY chips, providing robust 100/1000BASE-T1 connectivity for FPGA-based automotive networking applications.
Référence de l’article: VAR-827003316
Numéro de produit du fabricant: FL3113
Code douane: 84733020000
Article situé / expédié de : Riedlingen, Allemagne
Product Description
The FL3113 is an FMC module integrating four JL3113A1-NA automotive-grade Ethernet PHY chips, providing robust 100/1000BASE-T1 connectivity for FPGA-based automotive networking applications.
FL3113 has a standard FMC LPC interface that can be connected to the ALINX FPGA carrier board for use.
Key Features
- ● Multi-Channel High-Speed Connectivity
◆ 4 independent 1000BASE-T1 Ethernet ports.
◆ Dual-speed support: 100 Mbps and 1000 Mbps via RGMII/RMII interfaces
◆ Automotive-grade PHY chips (JL3113A1-NA) with MDIO management - ● Robust Hardware Design
◆ Industrial temperature range: -40°C to 85°C
FMC connector: ASP_134604_01 (LPC standard) - Dimensions: 76.5 x 69 mm form factor
| Caractéristique technique | Valeur |
|---|---|
| ID de l’art. | 102832 |
| État | |
| Modèle | FL3113 |
| Fabricant | Alinx Electronic Limited |
| Pays de fabrication | Chine |
| Contenu | 1 pièce |
Module Features
Module Architecture
Not all features are available simultaneously – please check the documentation for any applicable constraints.
All specifications are subject to change without notice. Please verify component specifications with datasheets.
ALINX provides product user manuals for each product.
What's Inside the Box
| FMC Cards | 1 |
|---|
