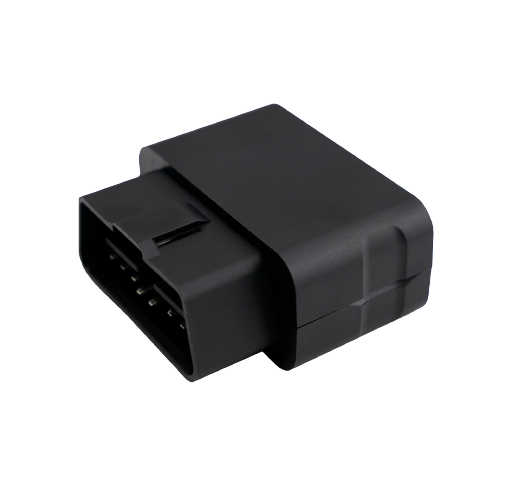

Queclink GV500CNA: 4G LTE Cat 1 Compact OBD Tracker | MIRIFICA Store

Technisches Merkmal	Wert
Art.-ID	103637
Zustand	Neu
Modell	GV500CNA
Hersteller
Herstellungsland	Deutschland
Inhalt	1 Stück
Gewicht	500 g

Specifications

LTE Specifications

Operating Band	LTE Cat 1 bis FDD: B2/B4/B5/B12/B13/B66/B71
Data Transmission	LTE-FDD: Max 10Mbps (DL)/Max 5Mbps (UL)

GNSS Specifications

GNSS Type	All-in-one GNSS receiver
Sensitivity	Cold start: -148 dBm Hot Start: -163 dBm Tracking: -165 dBm
Position Accuracy (CEP)	Autonomous: < 2.0m
TTFF (Open Sky)	Cold start: 24s average Hot start: 1s average

General Specifications

Dimensions	50(L) x 49(W) x 24(H) mm 1.97(L) x 1.93(W) x 0.94(H) inch
Weight	51g (1.45oz)
Backup Battery	Li-polymer Rechargeable 60mAh
Operating Voltage	8V ~ 32V DC
Operating Temperature	-20℃ ~ +70℃ -40 ℉ ~ 158 ℉
Storage Temperature	-40 ℃ ~ +80 ℃
Buffer Messages	Up to 10,000 buffer messages
BLE	Support BLE 5.1 protocol

Interfaces

OBDII Port	For external power source
Cellular Antenna	Internal only
GNSSS Antenna	Internal only
BLE Antenna	Internal only
LED Indicators	GNSS，CEL，PWR
Micro USB	Used for configuration, upgrade and debug
SIM Card	SIM card Nano (4FF) and eSIM chip compatible

Air Interface Protocol

Transmit Protocol	TCP, UDP, SMS
Scheduled Report	Report position and status based on preset time intervals, distance, mileage or a combination of these settings
Geo-fences	Geo-Fence alarm and parking alarm, support up to 20 internal Geo-Fence regions
Power On/Off Report	Report when the device is powered on and off
SOS/Emergency Alarm	SOS alarm via pressing function button
Tow Alarm	Alarm for tow event in ignition-off state
Virtual Ignition Detection	Based on voltage and accelerometer
Driving Behavior Monitoring	Aggressive driving behavior detection, including harsh braking, acceleration, etc.
Crash Detection	Accident data collection for reconstruction and analysis
Motion sensor	3-axis G-sensor
Remote Control	OTA control of digital outputs
