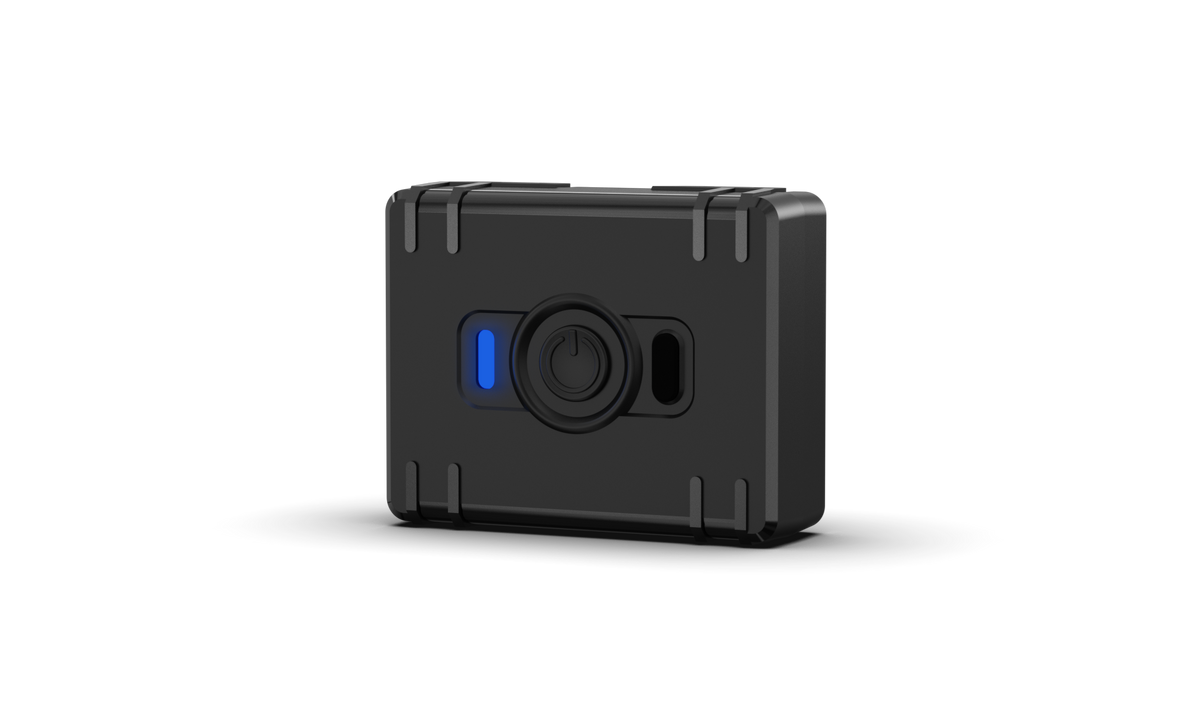

Teltonika: ATC700 Mini Asset Tracker

TRACK, CHARGE, REPEAT

The device comes with a 1,000 mAh rechargeable battery to provide reliable power and uninterrupted tracking

BACK-UP POWER SUPPORT

Compatibility with power banks ensures device operation during prolonged activities or in remote locations

VARIOUS BUTTON USAGE OPTIONS

A multi-action button can be set to activate tracking, act as a panic button, or switch between tracking intervals

EFFORTLESS INSTALLATION, RELIABLE OPERATION

Fast device set-up without any wires and protection in extreme weather conditions with the IP68-rated casing

Features

PRODUCT
Name	ATC700-QJAE0 ATC700-QKAE0
MODULE
Name	ATC700-QJAE0: EG915U-EU ATC700-QKAE0: EG915U-LA
Technology	LTE CAT 1/GSM/GPRS/GNSS
GNSS
GNSS	GPS, GLONASS, GALILEO, BEIDOU
Receiver	135 tracking/acquisition channels
Tracking sensitivity	-165 dBM
Position Accuracy	< 1.8 m CEP
Hot start	< 1 s
Warm start	< 25 s
CELLULAR
Technology	LTE CAT 1/GSM
2G bands	ATC700-QJAE0: GSM: B2/B3/B5/B8 ATC700-QKAE0: GSM: B2/B3/B5/B8
4G bands	ATC700-QJAE0: LTE FDD: B1/B3/B5/B7/B8/B20/B28 ATC700-QKAE0: LTE FDD: B2/B3/B4/B5/B7/B8/B28/B66
Data transfer	LTE FDD (CAT 1): Max. 10 Mbps (DL) / Max. 5 Mbps (UL) GSM (GPRS): Max. 85.6 Kbps (DL) / Max. 85.6 Kbps (UL)
Transmit power	Class 4 for GSM850/900: 33±4dBM Class 1 for GSM1800/1900: 30±2dBM Class 3 for LTE-FDD: 23±2dBM
Data support	SMS (TEXT, PDU), Network protocols (TCP, UDP)
DATA CODEC
Codec support	Codec 8 Extended
POWER
Battery	1000 mAh Li-Po battery, 3.7V (3.7Wh)
INTERFACE
GNSS antenna	Internal High Gain
Cellular antenna	Internal High Gain
USB	2.0 Magnetic USB contact
LED indication	1 RGB LED
SIM	Nano-SIM
Memory	128MB internal flash memory
PHYSICAL SPECIFICATION
Dimensions	62.2 x 54.2 x 20.3 mm (L x W x H)
Weight	71 g
OPERATING ENVIRONMENT
Operating temperature	-20 °C to +60 °C
Storage temperature (with battery)	-10 °C to +25 °C for 1 month 0 °C to +25 °C for longer than 3 months
Operating humidity	5% to 95% non-condensing
Ingress Protection Rating	IP65* *(internally tested, not certified). IP68 - in development.
Battery charge temperature	0°C to +45°C
Battery discharge temperature	-20°C to +60°C
Battery storage conditions	-10 °C to +50 °C for 1 month -10 °C to +35 °C for 3 months 0 °C to +30 °C for 1 year
FEATURES
Sensors	Accelerometer
Scenarios	Periodic tracking, Scheduler, Alarm button, Power bank support, Multi-action button, Geofence, Geofence with time zone, On-demand tracking, Configurable LED indication, Movement-based tracking *Feature development is still in progress and won’t be included in the pilot batch
Sleep modes	Online sleep, Power off sleep
Configuration and firmware update	FOTA WEB, Teltonika Configuration Tool (TCT)
SMS	Configuration, Debug
GPRS commands	Configuration, Debug
Time Synchronization	GPS, NITZ, NTP
CERTIFICATION & APPROVALS
Regulatory	CE RED, UKCA, E-Mark, RCM (In progress)
