V3 Technology

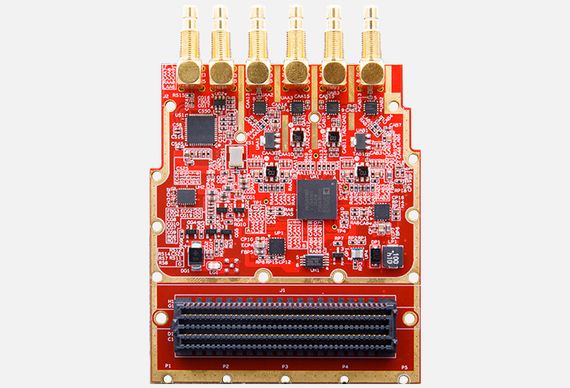

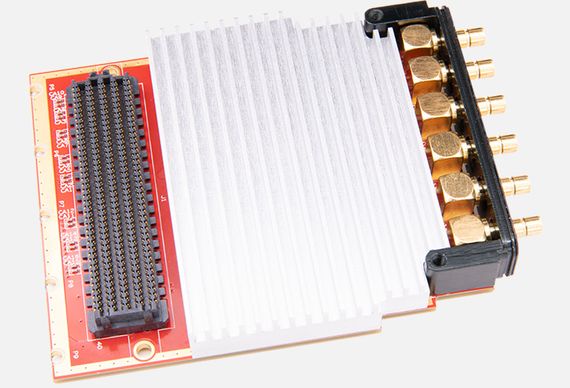

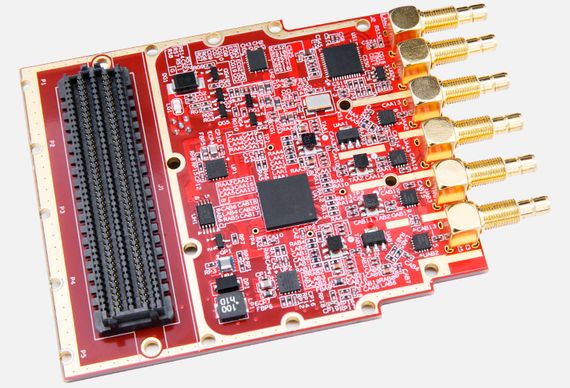

FL6000 12Bit ADC AD9361 Communication RF FMC LPC Card
The FL6000 highly integrated RF module can cover the 70MHz~6GHz frequency band and integrates dual channel transceiver links. The maximum real-time bandwidth for sending is 56MHz, and the maximum receiving bandwidth is 56MHz. FL6000 is more suitable for application on general software defined radio platforms. Please contact b2b@mirifica.eu for volume pricing.
Item number VAR-827004155
Manufacturer Product Number: FL6000
Taric/custom code: 84733020000
Imported produkt is shipped from Riedlingen, Germany
Product Description
The FL6000 highly integrated RF module can cover the 70MHz~6GHz frequency band and integrates dual channel transceiver links. The maximum real-time bandwidth for sending is 56MHz, and the maximum receiving bandwidth is 56MHz. Compared with traditional RF front-end, AD9361 can achieve advantages such as low power consumption and small size, while ensuring sensitivity and dynamic range performance. FL6000 is more suitable for application on general software defined radio platforms.
FL6000 has a standard FMC LPC interface that can be connected to the FPGA carrier board for use.
Applications
● 3G/4G micro and macro base stations (BTS)
● FDD and TDD active antenna systems
● Portable test equipment
Key Features
- ● Chip Model: AD9361
● Overlay Band: 70MHz~6GHz
● 12bit ADC & 12bit DAC
● Supports half duplex, full duplex, TDD/FDD mode
● RF impedance matching 50 Ω
● RX maximum 56MHz real-time bandwidth - ● TX maximum 56MHz real-time bandwidth
● Integrated power amplifier（ 14dB@2GHz ）, supporting a maximum transmission power of 10dBm output
● Supports internal or external reference clocks
● Parallel digital port
● Optional GPS module, providing reference clock and pulse synchronization signal through GPS
● FMC LPC connector
● Dimensions: 76.5 x 69 mm form factor
| Technical characteristic | Value |
|---|---|
| Item ID | 103588 |
| Condition | New |
| Model | FL6000 |
| Manufacturer | V3 Technology |
| Manufacturing country | China |
| Content | 1 piece |
| Weight | 1000 g |
| Net weight | 1000 g |
| Customs tariff number | 84733020000 |

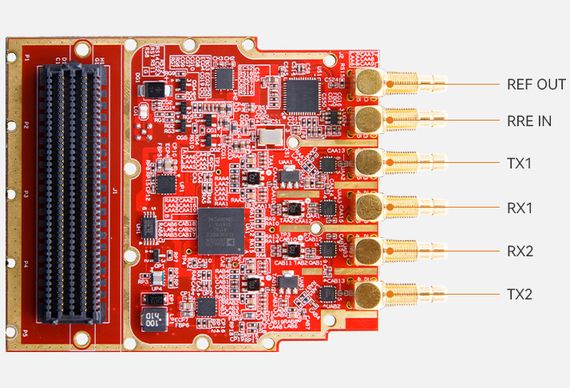

Module Features
Module Architecture
Click on the image to view a larger image.
Not all features are available simultaneously – please check the documentation for any applicable constraints.
All specifications are subject to change without notice. Please verify component specifications with vendor's datasheets.
What's Inside the Box
| FMC Cards | 1 |
|---|
