Product Description

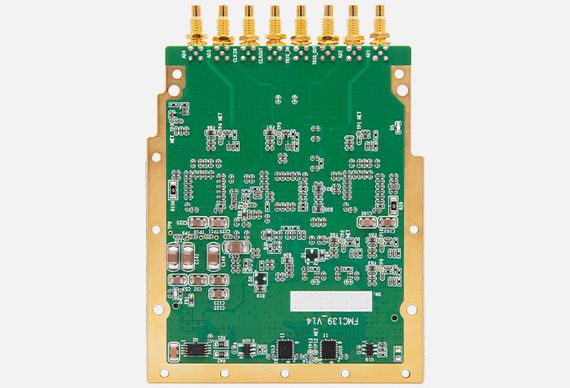

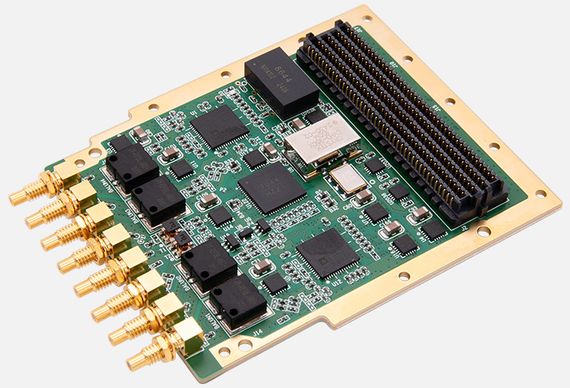

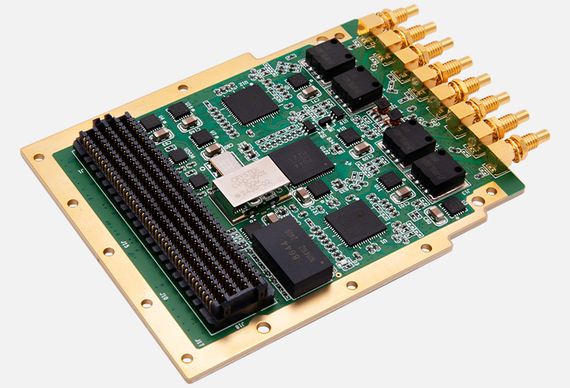

FH9680 is an FMC card compliant with the VITA57.1 standard, featuring a JESD204B (Subclass 1) interface. This subcard provides 4 channels of 14-bit ADC acquisition with selectable sampling rates up to 1.25 GSPS. The ADC device utilizes the AD9680 chip from Analog Devices Inc. (ADI), with a full-power -3dB analog input bandwidth of up to 2 GHz. The interface between the ADC and the FPGA host is established via a JESD204B interface with configurable lane configuration..

This board is mainly designed for applications such as communication and wireless infrastructure, radar, broadband communication, millimeter wave communication, and automatic testing equipment

Applications

● Radar and smart antennas, wireless infrastructure
● Broadband RF signal processing, signal generator
● Communication testing equipment
● Autonomous driving RADAR

Key Features

ADC Performance Index (AD9680)
● JESD204B (subclass 1) encoded digital output
● 1.65W total power consumption (1GSPS sampling rate)
● 16bit ADC & 14bitDAC
● SNR； 65.3dBFS@1GHz , -1dBFS amplitude
● SFDR： 85dBFS@1GHz , -1dBFS amplitude
● ENOB：10.8BIT（10MHz）
● DC power supply: 1.25V, 2.5V, 3.3V
● DNL：±0.5LSB，INL=±2.5LSB
● DC power supply: 1.25V, 2.5V, 3.3V
● Noise density: -154dBFS/Hz
● No missing code
● 2GHz analog input full power bandwidth (-3dB)
● Internal reference voltage source of ADC
● Mixed JESD204B Lane configuration
Physical and electrical characteristics
● Board size: 84.1 x 69mm
● Typical power consumption: 6W
● Power supply:+12V
● Heat dissipation method: natural air cooling for heat dissipation

Environmental characteristics
● Working temperature: -40 ° C~+85 ° C
● Storage temperature: -55 ° C~+125 ° C
● Working humidity: 5%~95%, non condensing
